Auto-Diagnostics, Brake Disc Skimming, Fuel Injector Cleaning, Battery Charging
Hoists
Product Description:

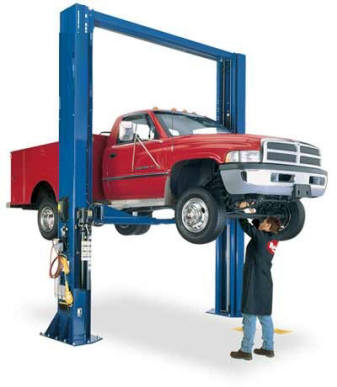

Base frame two post Hoist
* All closed Hydraulic System. High grade seal material to ensure no leakage
* Driven by Hydraulic cylinder transported by double steel cables
* Built-in mechanical safety locks systems
* Over load and over heat protection systems
* Releases the lock automatically when the lift are at the
* All closed Hydraulic System. High grade seal material to ensure no leakage
* Driven by Hydraulic cylinder transported by double steel cables
* Built-in mechanical safety locks systems
* Over load and over heat protection systems
* Releases the lock automatically when the lift are at the
|
Lifting Capacity
|
3000 KG
|
|
Lifting Height
|
1.83 M
|
|
Lifting Time
|
Up 50 Second Down 25 Second
|
|
Width between posts
|
2.8 M
|
|
Ground Size
|
4.45 M X 1.2 M
|
|
Power
|
415 Volt Three Phase
|
|
Price
|
On Request
|
Product Description:
Driven by hydraulic cylinder in stable ascending and descending;
Suitable for lifting various small and medium-sized vehicles with total weight for 3.5 tons, 5.5 tons, 8tons and up to 20tons in garage and workshop;
Offering full-range mechanical safety protection by using the safety latches;
Connected by four steel cables which forced synchronized movement of the lift in order to effectively prevent the sloping of the vehicles;
Equipped with Secondary Lifting hydraulic jack and sideslip which suitable for wheel alignment;
Specification :
Capacity: 3500kg
Lifting height: 1650mm
Lifting time: 45s
Total height: 2016mm
Total width: 3025mm
Total length: 5550mm
Power supply: 240V 2.2kw
Two Post Hoists

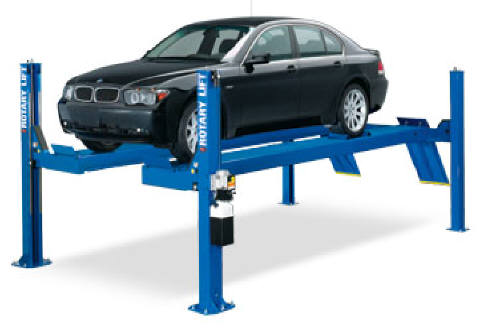

Four Post Hoists
Specification :
