Autel MaxiDas DS708

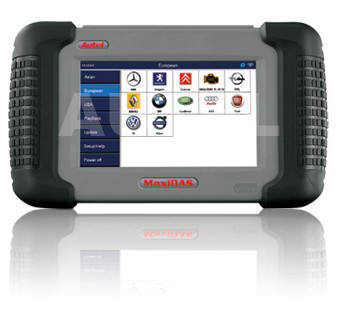

Autel MaxiDas DS708 Scanner

Features
Delicately developed by the most distinguished experts of this industry, the MaxiDAS� DS708 is a state-of-art diagnostic system that delivers more accurate, more stable, more comprehensive, easier and faster diagnosis.

The new generation platform stands out in a variety of tools by providing incredibly high performance with intuitive operation. For the first time, workshops and technicians could find an OE-level diagnostic solution designed for the aftermarket. The DS708 is the key to gain customer confidence and boost your bottom-line. Can you afford to be left behind?

Specifications

Operating System Windows CE
CPU ARM9+ARM7dual processor
Memory Max. 4 Gigabyte SD card
Communication Interface OBD, USB,Ethernet
Input Voltage 8.0-18.0V power provided via vehicle battery
Power Consumption 24W
Operating Current 350mA
Display Backlit, 7" TFT (800*480 dpi) color display with touchscreen
Operating Temperature 0 to 60°C (32 to 140 F°)
Storage Temperature -10 to 70°C (14 to 158 F°)
Operation Touchscreen and one rubber key (ON/OFF)
Printer Interface Wi-Fi, USB, Ethernet
Housing Strong plastic housing with protective rubber boot
Dimension 282mm (11.10”) x 163mm (6.42”) x 60mm (2.36”)
Weight approx. 2Kg (4.41lbs)
Protocols ISO 9141-2, K/L lins, flashing code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898 ISO15765-4, Highspeed, Middlespeed, Lowspeed and Singlewire CAN
